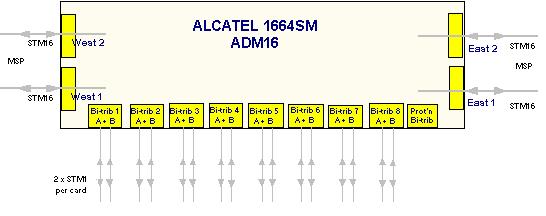

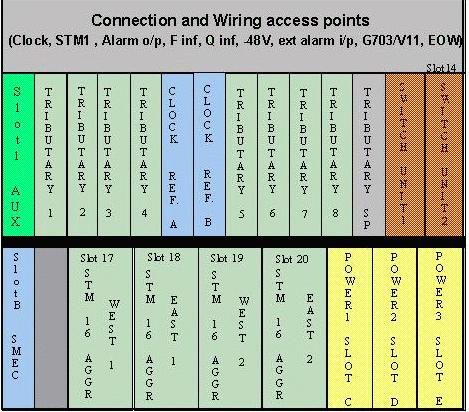

ALCATEL 1664SM ADM16 SDH Multiplexer Features • The 1664SM is an Add / Drop Synchronous Multiplexer • Hi order aggregate bit rate of 2488 Mbps (2.5 Gbps) • Tributaries can be 140 Mbit/s or 155 Mbps (STM-1)    Note: Tribs support electrical interface; no optical. • Supports VC4 SNC-P protection between STM-1 tributary and STM-16    East & West interfaces • Supports MSP protection on STM-16 interfaces    All cross connects are done at VC4 level 1664SM ADM16 Card Description • AUX card    used for EOW functions • Bi-Tributary Card    Provides 2 x STM-1 bi-directional interfaces per card, (tribs A & B)    Note: Alcatel do not provide an optical interface for the STM-1 cards    8 cards + 1 redundant in a fully equipped ADM16 • Clock Reference card    manages and provides timing for the ADM16 from external supplies   and the SDH line • Switch Cards    Manages protection switching of the spare STM-1 Bi-tributary card. • SMEC Card    CPU controller for the ADM16 • STM16 Aggregate Card    Provides the optical STM-16 interface to the SMW-3 SLTE • Power Supply Card    3 units supply power to the shelf 1664SM ADM16 Protection Scheme • 1+1 Fully duplicated Clock Reference Unit • N + 1 Bi-Tributary STM-1 card protection (8+1) • MSP protection available for STM-16 East & West interfaces • SMEC (CPU) card can be removed without loss of traffic    Note: Traffic is affected if a ‘new’ card is inserted without following special    procedures.    3 x PSU cards, 2 can support fully built ADM16, (2+1) 1664SM Communications Interfaces • RS-232 for F interface    Supports Windows 3.1 PC-based ECT (Equipment Craft Terminal). • Ethernet ISO LAN for Q interface, known as QB3* provides access    for 1353SH Network Management System. ALCATEL 1664SM ADM16 Shelf LAYOUT ALCATEL 1664SM ECT • ECT (Equipment Craft Terminal) uses the RS-232 F interface on    the 1664SM ADM16 • ECT application runs on a PC under Windows 3.1 • Provides graphical interface to manage the 1664SM • The main functions of the ECT are:    – Examine alarm and event conditions on the equipment    – Set and monitor performance statistics on the equipment    – Perform remote commands to other 1664SM equipment    – Set and examine all configuration data    Update equipment software via software download ALCATEL 1353 SH Element Manager 1353SH Features • The 1353SH is an SDH Network Element Manager • Provides a graphical interface to manage NEs • Manages each NE on an individual basis • NEs may be structured into hierarchical maps • Provides remote supervision and surveillance of SDH networks • Provides software management of NEs ALCATEL 1353 SH Element Manager Functionality of the 1353SH Application Software • Security Management • Map management • Network Element management    – Alarms and fault management    – SDH performance monitoring    – Software management    – Configuration management    – Loop back management On-Line help Network Management using the 1353SH (and RM) ALCATEL 1353 SH Element Manager System Requirements Application runs on a single UNIX workstation, or application can be distributed over multiple workstations in large SDH networks • Minimum hardware required: HP 9000 workstation plus peripherals:    CD Rom, DAT tape, floppy, printer & monitor • All NE communications supported by QB3* ISO LAN    All X-terminal and Regional Manager communications supported    by TCP/IP LAN
