banner.jpg - 2482 BytesHillman Fixes and Mods

  • Return to Ron's Hillman Pages
  • Click on a thumbnail picture for large image. Image file size is shown in kB.

    ignition switch connections

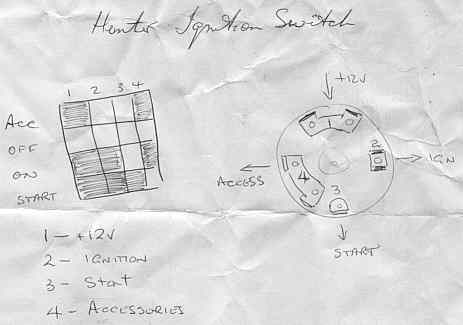

    Left: Ignition Switch Connections. This may prove useful if you are trying to work out how the switch connects in different positions. Pardon the appearance, it was done for a job and I was about to throw it away - hence the crumpled look. One day I'll redraw it neatly (you wish). (10Kb)

    Alternative Indicator Switch. After having several failures of the standard Lucas headlight flasher/direction indicator/horn switch, I machined up an adaptor to fit a Bosch switch from a 1989 Ford Falcon XD. The big advantage of this switch is that there are no moving wires like the Lucas switch so it doesn't flex and break the wiring. (250Kb)
